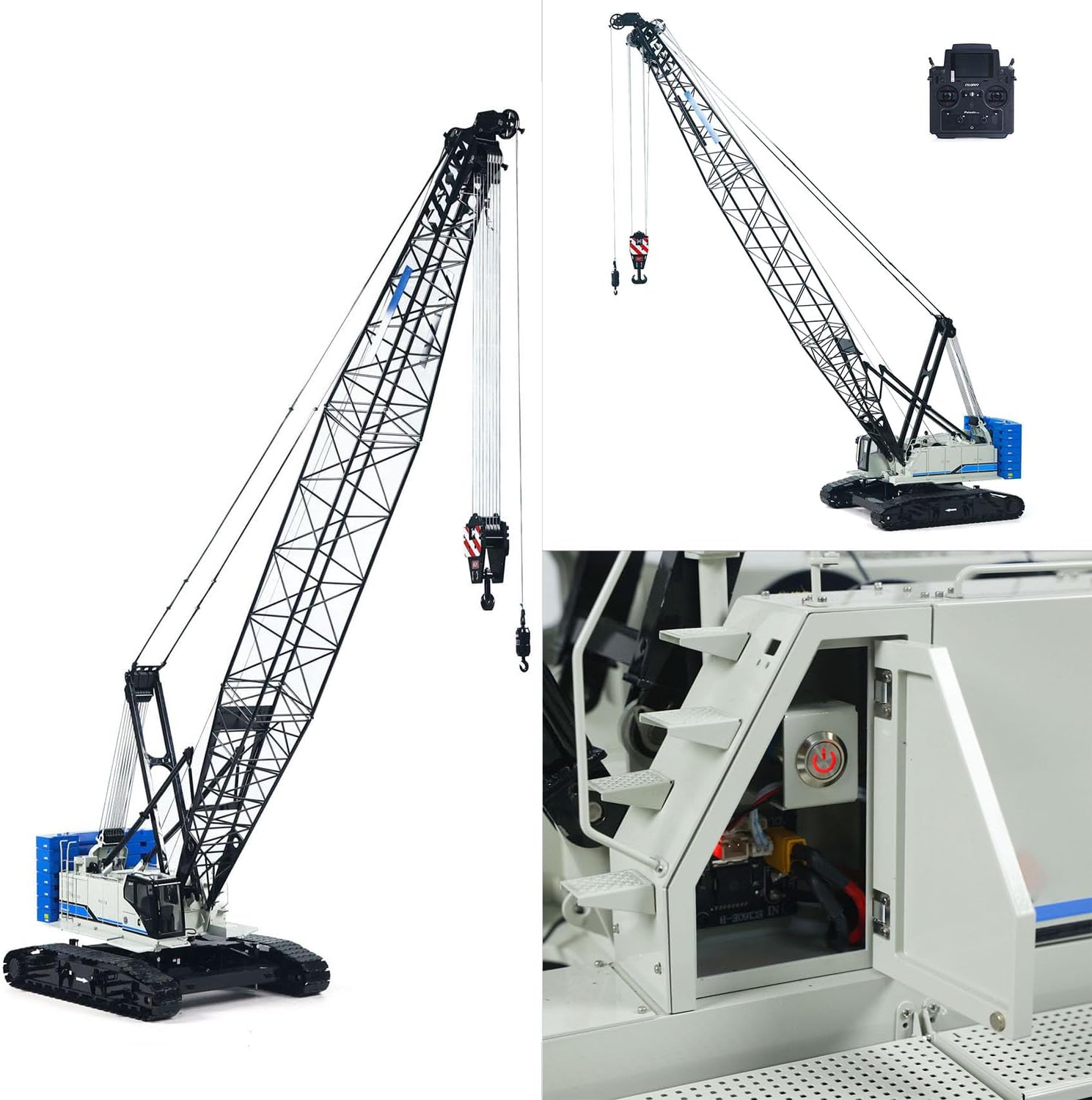

TOUCAN RC HOBBY Metal 1/14 RC Hydraulic Crawler Crane C1200 Remote Control Construction Vehicle Flysky PL18 LITE Radio Brushless Motor Battery

"#Metal 1/14 RC Hydraulic Crawler Crane C1200 Remote Control Construction Vehicle Flysky PL18 LITE Radio Brushless Motor Battery#Specification:Manufacturer: CUTModelItem Condition: New, Painted and AssembledMaterial: Metal, PlasticScale: 1/14Total Weight (kg): 64.5Lifting Capacity /kg: 45Upper Works Width /mm (with cab folded): 215Chassis Width /mm: 458Ground Clearance /mm (with outriggers extended): 78Track Height /mm: 99.5Overall Length /mm (excluding boom): 637.5Standard Section Dimensions (L*W*H) /mm: 638 / 149 / 129Upper Works Width /mm (with side platforms unfolded): 310Maximum Chassis Width /mm (with platforms): 514Cab Roof Height /mm: 272Track Length /mm: 566Overall Length /mm (with truss boom lowered): 1614Counterweight Swing Radius /mm: 354.3Hydraulic Pump: 500ml/min, ≤4MPaNumber of Hydraulic Cylinders: 8Chassis Lifting Drive: Hydraulic CylinderWinch Drive: Planetary Gear Reduction + Brushless MotorSupport Frame Ground Clearance /mm: 32Boom Luffing Angle /°: 103Single Cylinder Thrust /kg: 17Rated Pressure /MPa: 3Max Pressure /MPa: 4ID: CUT-C1200-CrawlerCrane-RTR-BUW#The Package Includes:1/14 RC Hydraulic Crawler Crane ModelESCMotorServoLight SystemSound SystemHydraulic SystemFlySky PL18 LITE Remote Controller and ReceiverVehicle BatteryChargerStickers#The Package Does Not Include:Hydraulic Oil

• 1. Equipped with CUT Model hydraulic pump delivering 500ml/min flow and 4MPa system pressure. The dual valve precisely control 8 hydraulic cylinders, enabling chassis lifting and track detachment via fully proportional hydraulic drive. The included pressure gauge allows real-time system monitoring.
• 2. Key motion mechanisms utilize planetary gearboxes paired with high-torque brushless motors (winch, travel, boom elevation and depression), ensuring powerful output and reliable continuous operation. Cab and upper structure rotation employ self-locking motors for precise positioning and stable holding.
• 3. The main frame is built using CNC machining and sheet metal fabrication. It ensures structural integrity for the 64.5kg model while achieving a 45kg lifting capacity, accurately replicating the triangular load-bearing aesthetics of a real construction vehicle structure.
• 4. Following real-machine logic, the entire model can be disassembled into modules (counterweight, boom, tracks, upper structure). Track modules support hydraulic detachment. This facilitates transportation and offers extensive potential for deep customization, scenario-based setups, and personalized upgrades.
• 5. The design allows for performance expansion through optional accessories: additional truss sections/tie rods extend boom reach, while extra counterweight blocks enhance maximum load stability, meeting evolving operational challenges.
• Notice：Due to the oversized and heavy nature of the package, we were only able to successfully ship it. If you have any questions, please click on the store name to contact us.
